Stage 1 on the 2.0 TDI Bi-Turbo changes the way your car drives
It is not just about peak power. It is about usable torque, instant response and real efficiency.
If you own a Passat B8, an Arteon or a Kodiaq with the 240 HP 2.0 BiTDI engine, you already have one of the best bases for a Stage 1 tune in the VAG range. The EA288 engine, its high factory torque and the DQ500 gearbox (wet-clutch DSG) are designed for high-performance applications. From the factory, this configuration delivers 240 HP and 500 Nm (depending on market and homologation). What makes tuning it genuinely interesting is the bi-turbo system: two turbos in series, giving quick response at low revs and high flow at high revs. A well-calibrated Stage 1 raises performance consistently, without sacrificing driving pleasure or turning the car into an "on/off" system.
What a correct Stage 1 on the 2.0 BiTDI means
Stage 1 is not just "more fuel". It is a coherent calibration that lets the engine produce clean power while respecting the limits for temperature, smoke and pressure, and the OEM protections. In practice, a sound calibration involves precise adjustments (depending on the software, version and car):
- Torque model and limiters: Request, permission and limitation depending on gear and conditions.
- Boost pressure: Actuator control for good spool, without unnecessary overshoot.
- Injection quantity and timing (SOI/DOI): For efficient torque, without excessive temperatures.
- Smoke limits (smoke limiter / λ): A powerful but clean diesel.
- EGT and temperature protections: To extend component life.
The EA288 engine comes with modern technology (including advanced EGR and thermal management), which makes an intelligent rather than aggressive calibration essential. With us, we make sure the tune respects emissions standards and we offer a reliability guarantee.
Why the 240 HP BiTDI responds exceptionally well to Stage 1
The CUAA engine is a 2.0 diesel designed for high torque at low revs and efficient breathing at the top end, thanks to the bi-turbo. For the customer, this means:
- Shorter overtakes, without annoying downshifts.
- Better flexibility: It pulls from low revs, without "dying" at the top.
- The feeling of a lighter car, especially when loaded or with 4Motion.
Dyno results: Stage 1 engine + Stage 1 DSG

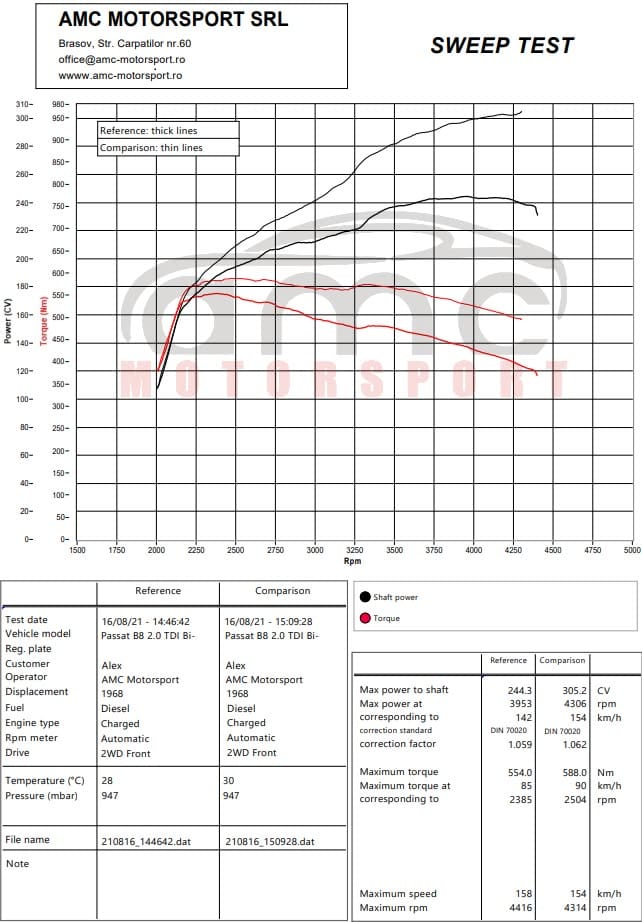

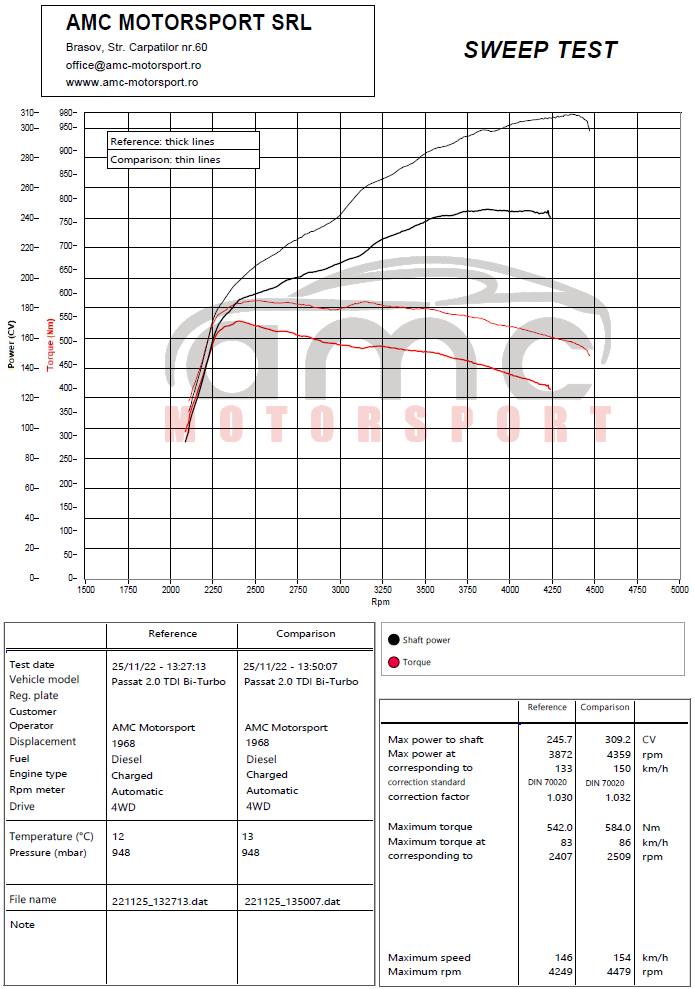

On the 240 HP 2.0 BiTDI we have 9 measurements so far on the Bapro dyno in Brasov, on the Passat B8, Passat Alltrack and Skoda Kodiaq RS, each one before and after Stage 1. After Stage 1, measured power was between 299 and 315 HP, a gain of 55 to 70 HP over the stock measurement of the same car. As an example, two of them, with the charts at the end of the article (DIN 70020 correction):
| Passat B8, November 2022 | Passat B8, August 2021 | |
|---|---|---|
| Stock (measured) | 245.7 HP / 542 Nm | 244.3 HP / 554 Nm |
| Stage 1 (measured) | 309.2 HP / 584 Nm | 305.2 HP / 588 Nm |
| Gain | +63.5 HP / +42 Nm | +60.9 HP / +34 Nm |
From the factory, the engine is rated at 240 HP and 500 Nm. Cars usually come out of the factory above the catalogue figure, especially for torque, which is why we compare with the measurement taken before tuning, not with the catalogue. The first measurement in the table was taken at 12°C, the second at 28-30°C.
Values can vary depending on ambient temperature, the condition of the car, fuel and the dyno. But what really matters? The difference in behaviour: torque arrives earlier, the usable band is wider and DSG shifts are quicker and more logical.
Stage 1 DSG DQ500: why to do it together with the engine
The DQ500 is one of the most robust transverse DSG gearboxes in the VAG group, capable of up to ~600 Nm. Stage 1 optimisation includes:
- Reducing shift delay and optimising the D/S modes.
- Modifying the torque limits, rev limits and shift points.
- Optimising Launch Control for an explosive start.
- Reducing gear change times.
- Removing the automatic upshift in manual mode.
Beyond the figures: the real experience after the remap
On the factory software, maximum torque is limited to a narrow band (approx. 2200-2750 rpm), which means acceleration "in waves" and frequent gear changes. After Stage 1, the band extends to ~3750 rpm, an increase of almost 1000 rpm.
What does this mean behind the wheel?
- Smoother gear changes, without "drops" between gears.
- Better flexibility: It pulls steadily in any gear.
- Improved efficiency: Lower fuel consumption in normal driving, thanks to fewer downshifts.
- Instant throttle response, whatever the speed.
The engine delivers its torque evenly and in a controlled way, ideal for overtaking, part-throttle acceleration or motorway driving. A wide torque band reduces stress on the transmission, avoids aggressive kickdowns and makes the car more predictable and pleasant.
Why does this matter more than peak figures? It is the difference between a car that is fast on paper and one that is efficient in real life. At AMC Motorsport, we offer custom tuning, dyno-tested and with a guarantee.
