Stage 1 case study on the 2.0 TDI 140 HP CFFB, Passat B7 (Bapro dyno, July 2026)
This case study documents a CFFB chiptuning project at AMC Motorsport Brasov: an individually calibrated Stage 1 on the 2.0 TDI 140 HP engine, code CFFB, measured on the Bapro BPA-2R HP dyno. The CFFB is one of the core diesel engines of the VAG group's EA189 generation. It is found in the Volkswagen Passat B7, Golf 6, Tiguan, Sharan, Skoda Superb 2 and Seat models, and its reputation comes from a very good balance of low fuel consumption, flexibility and reliability.
From the factory, this engine is calibrated conservatively, with significant limits on torque and on air mass management. That reserve is exactly what allows a balanced Stage 1, provided the calibration is done properly and checked through repeated measurements.
On 3 July 2026 we calibrated a Passat B7 2.0 TDI CFFB at AMC Motorsport. This article documents the whole process: initial inspection, stock datalog, writing our own file, measurement on the Bapro dyno and analysis of how the engine behaves under load. The final figures are taken directly from the Bapro dyno sheet and from the logs of the operating parameters.
The dyno figures, in short
| Stock measured | AMC Stage 1 | Gain | |
|---|---|---|---|
| Power | 151.9 HP @ 3,929 rpm | 185.5 HP @ 3,747 rpm | +33.6 HP |
| Torque | 357.0 Nm @ 2,218 rpm | 427.0 Nm @ 2,193 rpm | +70.0 Nm |
| Conditions | 26°C / 945 mbar | 27°C / 945 mbar | DIN 70020 correction |
Technical identity card
| Engine code | CFFB |
| Family | EA189 (2.0 TDI CR) |
| Displacement | 1,968 cm³ |
| Factory power | 140 HP |
| Factory torque | 320 Nm @ 1,750-2,500 rpm |
| ECU | Bosch EDC17C46 |
| Injection | Bosch common rail, piezo injectors |
| Turbo | VTG (variable geometry) with actuator |
| Emissions control | DPF + EGR (cooled), Euro 5, no AdBlue |
| Transmission | Manual |
CFFB chiptuning: why it responds well to Stage 1
The 2.0 TDI CFFB engine has a substantial reserve in its OEM calibration. There are conservative limits on torque, turbo management, fuel control and throttle response. When these areas are recalibrated coherently, the engine delivers significantly better without needing any hardware changes.
In practice, this means we gain extra performance not by forcing new components, but by releasing the potential already present in the factory hardware.
The goal of this project
For this Passat B7 2.0 TDI 140 HP CFFB, the goal of the Stage 1 calibration was a clear performance gain without pushing the engine into a needlessly aggressive zone.
In real use, what matters is flexibility, in-gear acceleration and the way the engine delivers torque under load. A proper Stage 1 should not turn the car into a brutal or smoky diesel. It should feel like a stronger, more responsive and more pleasant OEM version in daily driving.
The AMC process on this specific case
1. Initial inspection
Before any software work, the engine is checked thoroughly. We analyse turbo behaviour, rail pressure, air flow, DPF loading and any active deviations or limits. If the engine shows mechanical problems or significant deviations, the process stops until the cause is fixed.
Specific diagnostics on the emissions systems are, in fact, part of our free emissions system check in Brasov, a clear starting point before any Stage 1 project.
2. Stock dyno measurement
Every project starts by measuring the real power. We do not compare the final result with a theoretical catalogue value, but with the real performance of the car before the work.
In this case, the stock measurement showed 151.9 HP and 357.0 Nm at the flywheel, slightly above the nominal factory figure, a sign that this example is mechanically healthy. Two apparently identical engines can differ significantly depending on wear, maintenance, fuel or the condition of the particulate filter. The dyno provides the objective baseline for the whole process.
3. Analysis of the original calibration
After reading the ECU, the OEM calibration is analysed in detail. On the CFFB, the most important areas are the torque model, turbo management, fuel control and thermal protections. Professional software does not just mean more boost and more fuel, it means keeping a correct correlation between all systems.
The AMC calibration strategy on the CFFB
On this platform, the main focus is controlled torque delivery. We do not aim for aggressive spikes at low rpm and we do not build calibrations for unrealistic marketing figures.
The strategy aims for:
- fast and controlled turbo spool
- linear torque across the whole usable range
- stable temperatures under sustained load
- correct correlation between air, fuel and timing
The result has to be a faster and more flexible car, without needlessly aggressive behaviour, exactly the balance that allows the result to stay repeatable over hundreds of thousands of kilometres.
Real data logging: the check before Stage 1
The dyno shows the final result, but the logs confirm whether the engine is healthy and has the reserve for a balanced Stage 1 calibration. Before any software work, we recorded the operating parameters on the standard software at full load. The values below were measured in stock condition, and they tell us whether we can calibrate safely.
| Channel (stock) | Maximum measured | @ RPM | Reading |
|---|---|---|---|
| MAP (absolute boost) | 2,391 mbar | 2,779 | Actual boost closely follows the ECU target (~2,332 mbar), healthy turbo |
| Rail pressure | 1,792 bar | 4,004 | Actual ~identical to requested (1,791), healthy injection |
| EGT | 729°C | 4,143 | Exhaust temperature within normal limits on stock |
| Engine torque (ECU) | 357.2 Nm | 2,488 | Matches the 357 Nm measured at the flywheel, the real baseline before calibration |
| Main IQ | 56.9 mg | 2,527 | Factory injection quantity, with margin to the smoke limit |
| Lambda min | 1.11 | 1,664 | Lean, conservative mixture, room for safe optimisation |
| MAF | 376.2 kg/h | 3,649 | Stable air flow, no intake restrictions |
| IAT | 52.2°C | 4,175 | Intake air within normal limits |
| Coolant | 87°C | 3,428 | Engine warm, measured at operating temperature |
| Oil temp | 90.9°C | 4,175 | Oil at real operating temperature |
1. Turbo: healthy and controlled
On stock, actual boost closely follows the value requested by the ECU (~2,391 vs ~2,332 mbar), without oscillation. A turbo that responds cleanly and steadily is the basic condition for a safe and repeatable Stage 1.
2. Injection system: no pressure drops
Actual rail pressure practically matches the requested value (~1,792 vs ~1,791 bar). This almost perfect correlation indicates a healthy injection system, which is essential for stable torque after calibration.
3. Intake and air flow
Stock air flow (~376 kg/h) is stable, with no major intake restrictions, a sign that the system is doing its job. Healthy air flow is the basis for efficient combustion.
4. Reserve for Stage 1
The factory torque (ECU ~357 Nm, confirmed by the dyno) clearly shows that the engine has the reserve for a balanced Stage 1 calibration. The conservative stock mixture (lambda 1.11) and the injection quantity below the smoke limit confirm that there is room for optimisation without forcing the components.
5. Healthy temperatures
EGT, coolant and oil stay within normal limits, measured warm at operating temperature. Thermal margin is exactly what we protect when calibrating: we do not push the engine into a needlessly aggressive zone.
The final values of the Stage 1 calibration (boost, injection and timing targets) are part of AMC's internal know-how and are not made public. We publish the result measured on the dyno, not the recipe.
DPF and EGR after Stage 1: what stays untouched
The Passat B7 with the CFFB engine is a Euro 5 diesel: to reduce emissions it uses a DPF (diesel particulate filter) + cooled EGR, with no SCR system with AdBlue and no urea tank. The most common question we get in the workshop:
But what happens to the DPF and the emissions system after tuning?
Short answer: they stay exactly as they were. Long answer, component by component:
DPF (particulate filter). We touch neither the post-injection, nor the Δp threshold, nor the ash levels. The filter keeps cleaning itself passively when cruising and actively when the regeneration threshold is reached, just as on the OEM software.
EGR (exhaust gas recirculation). Untouched. The recirculation strategy stays as per the original calibration, which is vital for staying within the Euro 5 standard.
Sensors and diagnostics. Untouched, 100% functional and diagnosable, with no fault codes caused by the software.
The practical result: no worries at the ITP (periodic technical inspection), no "check engine" light on the dashboard, Euro 5 compliance maintained.
The result on the dyno: the real graph
We carried out the second run on the Bapro BPA-2R HP dyno after writing the modified software. Same dyno, same DIN 70020 correction, same atmospheric conditions.

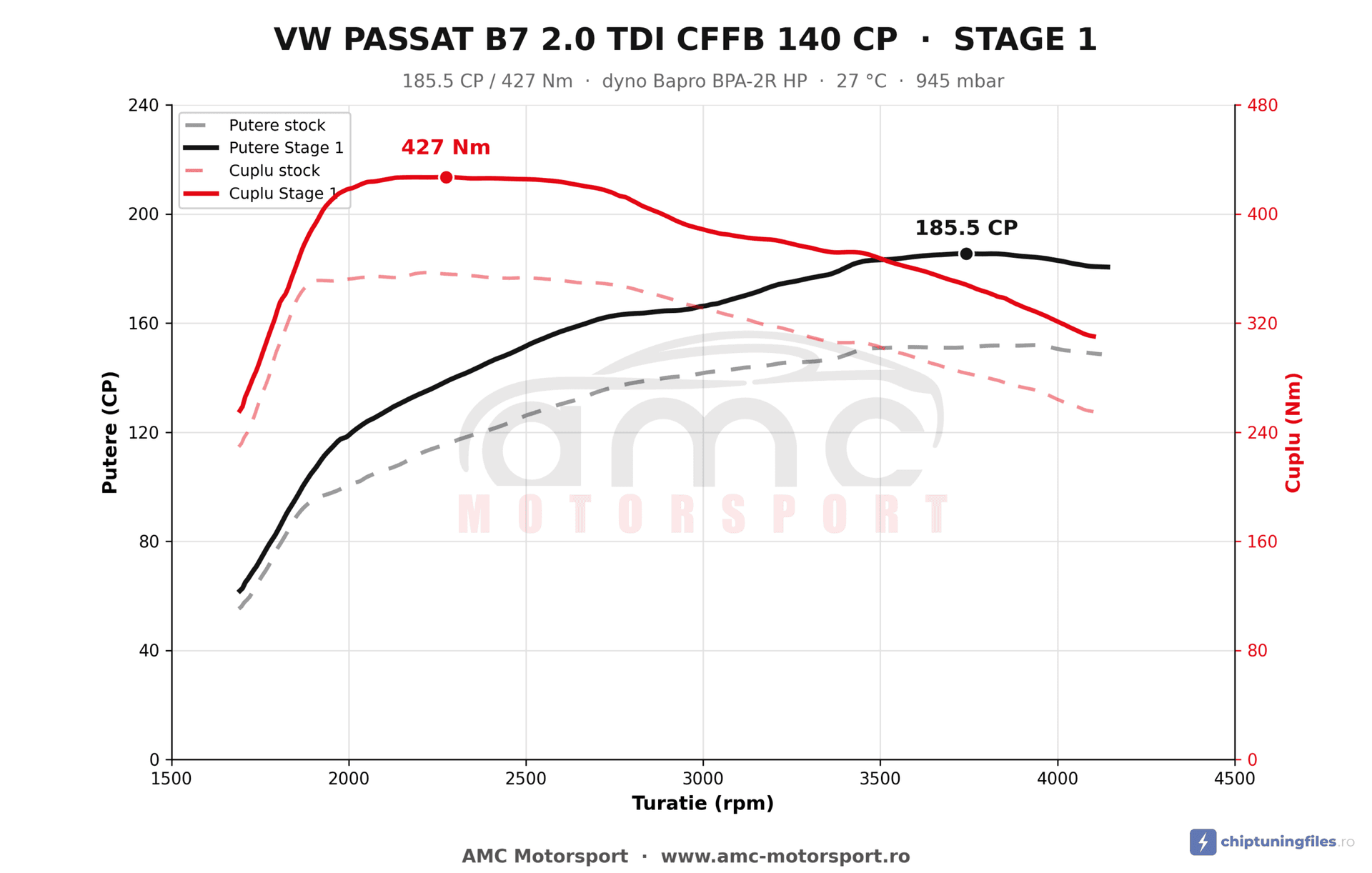

Bapro sweep test 03/07/2026, stock curve (dashed line) vs Stage 1 (solid line).
The measured result:
- Stage 1 power: 185.5 HP @ 3,747 rpm (+33.6 HP / +22.1%)
- Stage 1 torque: 427.0 Nm @ 2,193 rpm (+70.0 Nm / +19.6%)
The gain falls exactly within the range we consider realistic and sustainable on this platform. What matters is that these values were achieved without aggressive or unstable behaviour.
Reading the graph: the AMC calibration philosophy
The resulting graph clearly shows our calibration philosophy on the CFFB. Three aspects are worth reading carefully.
1. Strong but controlled torque
Peak torque of 427 Nm arrives early, around 2,193 rpm, practically at the same point as the stock peak, but 70 Nm above it. In real use, this completely changes how flexible the car feels. The difference shows in:
- in-gear acceleration from 80-120 km/h
- overtaking in 6th gear
- response to mid-range acceleration
- part load in town
- out-of-town driving with a loaded car
Important: delivery stays progressive and predictable. There are no aggressive spikes that overload the turbo or the clutch.
2. The power curve is healthy
Power rises linearly up to around 3,750 rpm and stays high until about 4,100 rpm. Stage 1 brings a consistent power gain across the whole usable range, not just an isolated peak. Stock reaches ~152 HP late and drops off quickly; Stage 1 stays full and stable in the range where you actually drive.
Unbalanced software often produces sudden power drops, high temperatures, premature limiting, boost instability and the feeling that the engine "dies" after the mid-range. In this case, the curve stays clean, linear and stable.
3. Correlation between the dyno and data logging
An important point is that the starting point was a healthy engine: the stock logs showed a turbo that follows its target, stable rail pressure, good air flow and temperatures within limits. On this solid basis we built the Stage 1 calibration, which was then measured on the dyno. The final measurement confirms a clean, linear and stable result, exactly what we aim for.
What you feel behind the wheel after Stage 1 on the CFFB
The dyno figures tell half the story. What matters to a Passat owner who drives to the office every day and to the mountains at the weekend:
- In-gear acceleration from 80-120 km/h in 6th gear, without changing down. On the DN1 (national road 1) between Brasov and Predeal, overtaking is done without stress.
- More responsive pulling away from low rpm: more than 400 Nm of torque is available from ~2,100 rpm, so the car moves off more easily without "straining" the clutch.
- Long trips with a trailer or a full boot. The margin is felt most clearly when climbing a gradient with a loaded car.
- Steady cruising at 130 km/h: fuel consumption stays within the factory window or drops slightly (0.3-0.5 l/100km in economical driving, as reported by our customers on the 2.0 TDI).
- Sound and behaviour unchanged. We do not modify the exhaust and we do not add sport maps. The same car, more responsive.
Real outputs and sustainable values on the CFFB
In recent years the market has been flooded with exaggerated figures for this engine. In practice, a properly calibrated 2.0 TDI CFFB has to be treated realistically.
From the experience gained on hundreds of EA189 diesel platforms, a healthy and balanced Stage 1 for the 2.0 TDI 140 HP CFFB usually takes the engine into the range of:
- 180-190 HP
- 410-430 Nm
The exact values depend on the condition of the engine, ambient temperature, fuel and the efficiency of the intake system. The case presented in this article (185.5 HP / 427 Nm) sits right in the middle of this range. In our view, this is the optimal balance between performance, temperatures and reliability.
How long it takes, how much it costs
A complete Stage 1 on the CFFB at AMC takes 90 minutes on average, with an appointment booked in advance. The typical price for Stage 1 with before/after dyno runs included is 1,599 RON, varying with the ECU reading method (OBD vs bench/BDM) and any additional options. As this is a manual gearbox, no work on the transmission is needed; Stage 1 on the engine works fully, as we deliver it.
For an exact quote for your car, use the AMC configurator or ask on WhatsApp.
Why not all Stage 1 software is the same
From the outside, most Stage 1 offers look similar. In practice, the differences are huge.
Poor software can mean excessive boost, smoke, high temperatures, aggressive torque at low rpm, protections removed, limiters raised without logic and, most importantly, no testing, no logging and no real measurement on the dyno.
A professional Stage 1 has to be coherent, measurable, repeatable, stable and tested. The difference between the two types does not necessarily show in the first week; it shows after 50,000-100,000 km, when the turbo, the injectors and the clutch confirm or disprove the quality of the file.
At AMC Motorsport, every project is handled individually and checked against real data. No generic files, no marketing figures, no "approximations".
Conclusion
The 2.0 TDI 140 HP CFFB engine is a very good diesel platform for a balanced Stage 1. When calibrated properly, the engine can deliver 180-190 HP and 410-430 Nm with much fuller and more efficient behaviour in daily use.
The real difference, however, does not come from the figures alone. It comes from inspection, measurement, software analysis, data logging and dyno testing. It comes from respecting the thermal margin, the mechanical limits of the turbo and the injection pump, and the durability of the transmission.
At AMC Motorsport, a Stage 1 does not just mean more power. It means a calibration built on real data, measured on the dyno and confirmed on the road.
Come and see what your engine can do
If you have a Passat, Golf, Tiguan, Superb or Sharan with the CFFB engine and you want to know exactly what it produces, not "approximately" but measured on the dyno, book a dyno session at AMC. See your figures before and after, on the same Bapro dyno, on the same day.
Str. Carpatilor nr. 60, Brasov · 17 years of experience · 3,000+ dyno projects · 426 ★★★★★ reviews on Google
Price configurator · WhatsApp · Booking
AMC Motorsport, calibration based on real data, not on estimates.
